Description

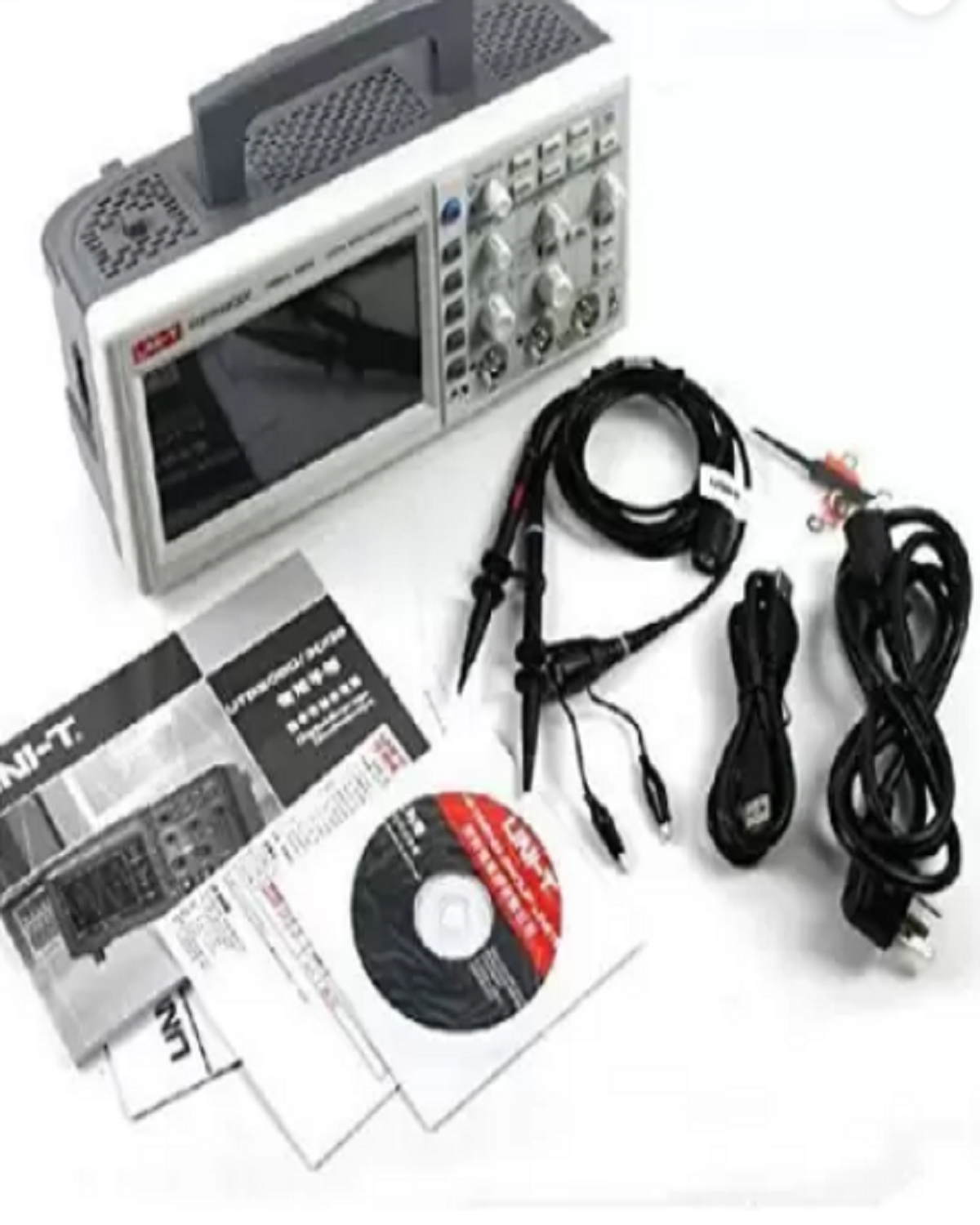

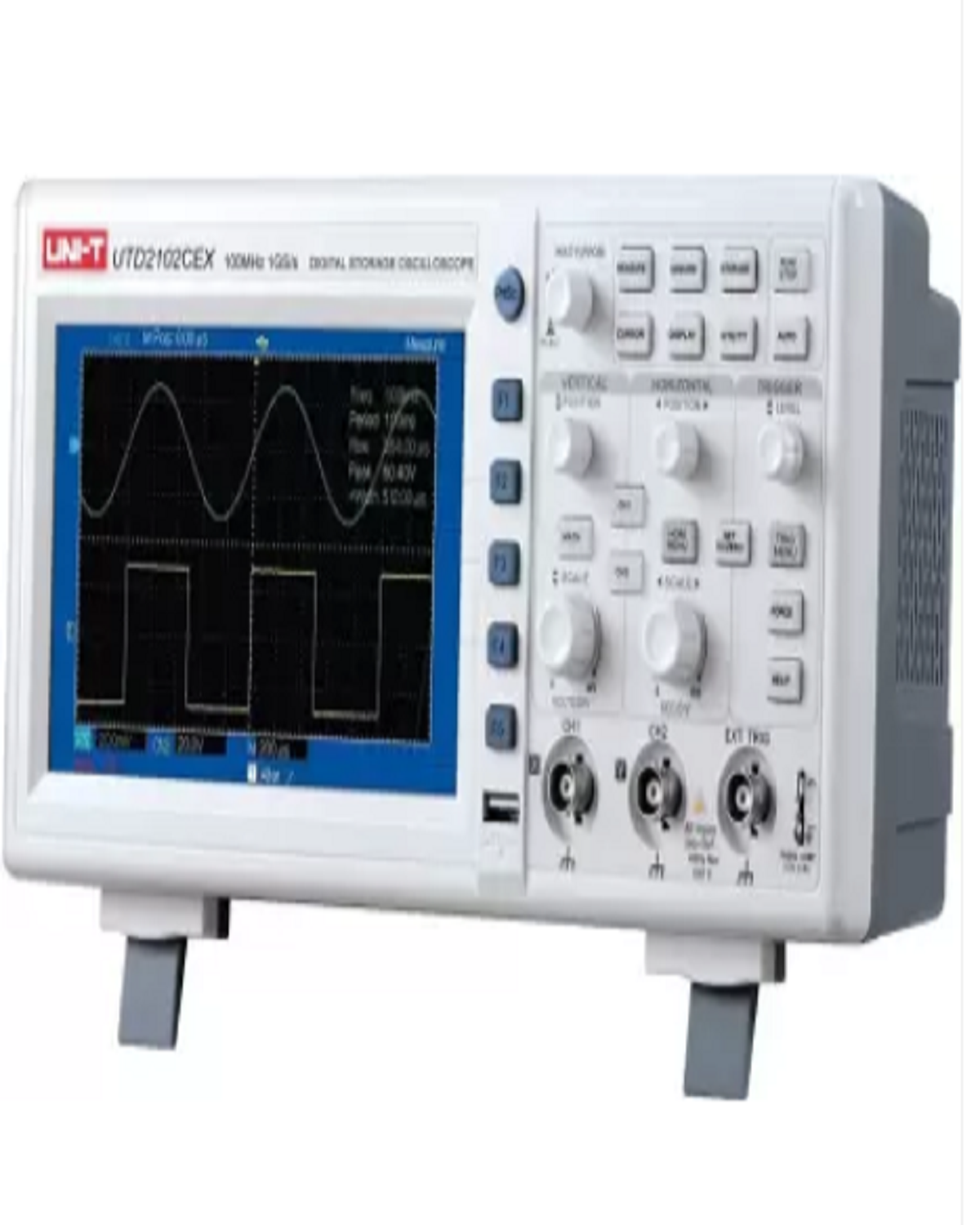

Digital storage oscilloscope with large display 7 inch, full color LCD, 800x480 pixels 2 channel storage oscilloscope with outstanding performance data and an extra large, backlit color display. Designed for ease of use with very fast implementation of measurement input. Ideal for service work, training and quality assurance. And #x2022; usb port to export measurement results to your pc/notebook channels: 2 bandwidth: 100 MHz sample rate: 1 gs/s rise time: 2000 wfms/s vertical sensitivity: 1 mv/div ~ 20 v/div horizontal time basis: 2ns/div ~ 50s/div storage forms: setup, wave, bitmap trigger types: edge, pulse width, alternating interfaces: usb otg power supply: 100 240 v ac, 40 440hz display: 7 inch, 64k full color LCD, 800x480 pixels weight: 2. 2 Kg included with delivery: digital storage oscilloscope, 2 probes (1: 10:, mains cable, usb cable, pc software, user manual (German, English) manufacturer: unit trend package weight: 3. 448 Kg rohs: conform
